The Heart & Brain of a Humidifier: How a Superior Control Circuit Board Elevates Your Product Competitiveness？

In dry seasons, humidifiers are our best allies for maintaining indoor comfort. But have you ever wondered what silently orchestrates this device, enabling it to intelligently adjust humidity, switch modes, and ensure safety?

In the highly competitive humidifier market, while industrial design may catch the consumer's eye, it is the "core" that determines user retention and brand reputation. Have you considered why one humidifier is praised as "smart, quiet, and safe," while another is flooded with negative reviews for "dry burning, noise, and control failure"?

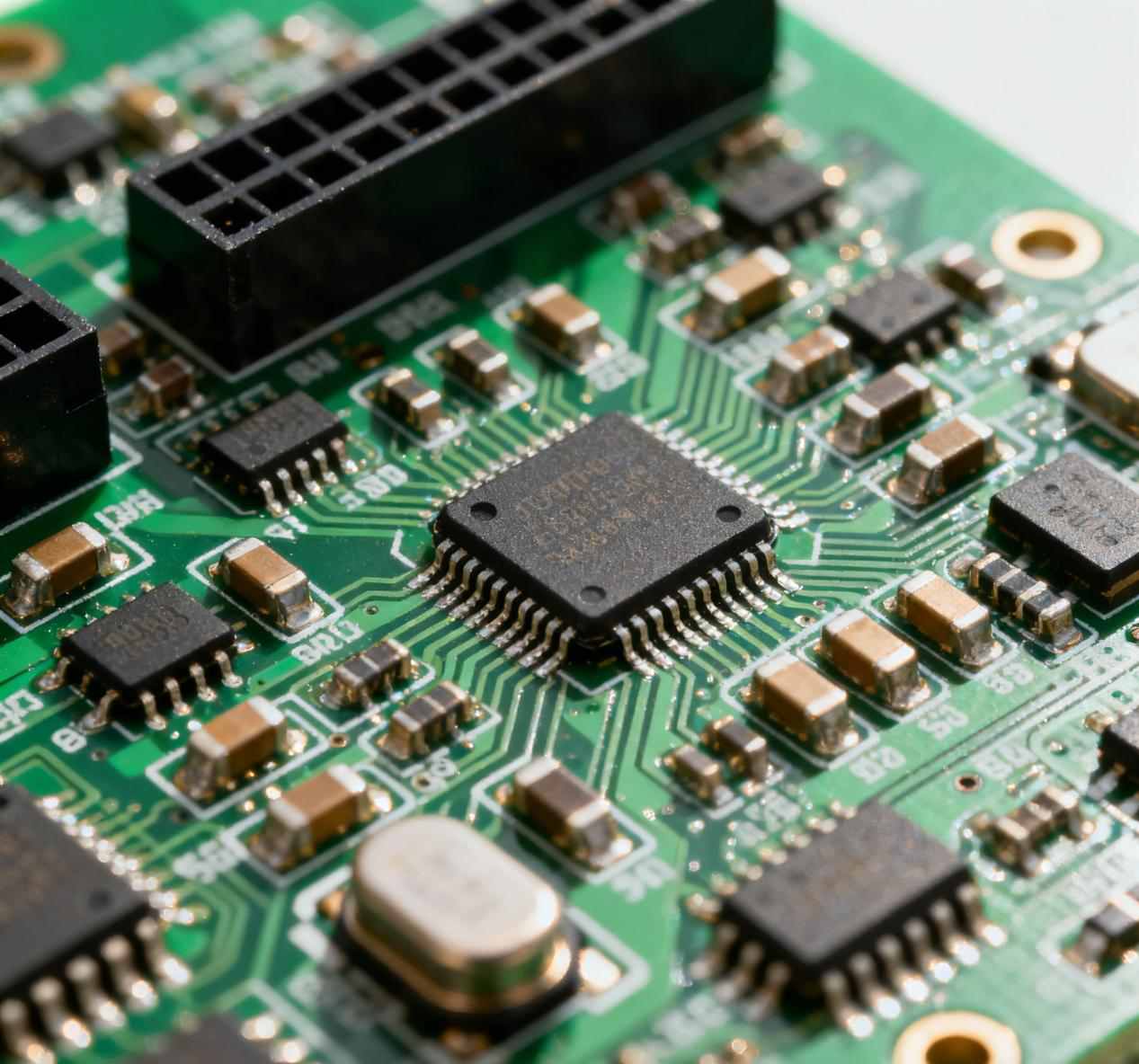

The answer lies in the Humidifier Control Circuit Board (PCBA). It is not only the device's "brain," handling complex logic, but also its "heart," driving core components efficiently. For brand owners, a high-quality PCBA means lower after-sales rates and a higher brand premium. Today, we delve into this core component from a manufacturing and design perspective.

1.The Control Circuit Board: The Intelligent Command Center

Imagine the control circuit board as a micro-computer integrated onto a rigid plate. It receives "commands" from the user or the environment and then precisely drives the humidifier's various parts to execute tasks. Without it, a humidifier is merely a soulless shell.

2.Core Components: The Anatomy of a Superior PCBA

A High-Performance Humidifier Control Board typically consists of the following key sections:

1. MCU (Microcontroller Unit):

This is the true "brain." It is a chip integrating a processor, memory, and I/O ports, responsible for executing preset programs and handling all data and logical judgments.

2. Sensor Interfaces:

• Humidity Sensor: Real-time monitoring of environmental humidity, feeding data back to the MCU. This is the cornerstone of automatic constant humidity functions.

• Water Level Sensor: Detects the water tank level and automatically cuts power when water is low to prevent dry burning and ensure safety.

• Temperature Sensor (Optional): Used in high-end models to provide more precise environmental data.

3. Power Control Unit:

• Transistors/MOSFETs: Acting as electronic switches, they precisely control the power of the atomizer (ultrasonic type) or heater (evaporative type) based on MCU instructions to regulate mist volume.

4. User Interface (UI):

• Buttons/Touch Interface: Receives user commands for power, humidity adjustment, timers, etc.

• LED Display/Indicator Drivers: Clearly shows the user the current status, set humidity, and error codes.

5. Power Management Unit:

Converts household AC power into the stable DC power required by the circuit board and components, serving as the energy guarantee for the system's stable operation.

3.How Does Smart Control Work? A Closed-Loop Process

The intelligent control of modern humidifiers is a classic closed-loop automatic control system:

1. Target Setting: You set the desired humidity (e.g., 50%) via the panel.

2. Real-Time Monitoring: The humidity sensor continuously measures the room (e.g., currently 40%).

3. Decision Making: The MCU compares the target with the actual value and detects low humidity.

4. Command Execution: The MCU activates the atomizer at high power through the power control unit.

5. Feedback Loop: As the humidifier works, the sensor detects the rising humidity.

6. Equilibrium: When humidity reaches 50%, the MCU instructs the atomizer to lower power or enter standby mode to maintain equilibrium.

This cycle repeats continuously, achieving true "unattended" intelligent constant humidity.

4.Why is a Premium Circuit Board Crucial?

Choosing a humidifier equipped with a high-quality control board means you gain:

• Precise Humidity Control: Avoids over-humidification or insufficiency, ensuring better comfort and protecting furniture and books from moisture damage.

• Comprehensive Safety: Reliable protection against dry burning and electrical overload eliminates safety hazards.

• Lasting Performance: Utilizing high-quality components and rational circuit design ensures long-term stability and reduces failure rates.

• Rich Smart Features: Support for App control, voice assistant integration, timers, and multiple modes—all rely on powerful board design.

• Energy Efficiency: Precise power control prevents energy waste.

5.Selecting the Right Control Circuit Board

When selecting or designing a humidifier, do not focus solely on tank capacity or exterior design. The internal control circuit board is the key to determining product competitiveness and user experience. Though small, it carries the heavy responsibility of intelligence, safety, and reliability.

Tailored for Your Business

Are you looking for reliable, high-performance humidifier control board solutions?

Ruichun is an expert in the design and manufacturing of smart home appliance control boards. We provide more than just circuit boards; we offer:

• Customized Development: Tailored PCBA design solutions based on your product positioning and functional requirements.

• Stability & Reliability: Using industry-leading components and strict production processes to ensure excellence in every board.

• Cost Optimization: Leveraging our extensive experience to provide you with the most competitive BOM cost solutions.

• Full-Cycle Technical Support: From concept to mass production, we offer end-to-end technical support to help you capture the market quickly.

Contact us today for a free technical consultation. Let us inject a powerful "Heart & Brain" into your next star humidifier product!
